FMEA: How to properly set up Failure Modes and Effects Analysis

You may work in development, logistics, manufacturing, or another type of business with critical machinery. No matter what field you’re in, FMEA is a necessary tool for reducing your risk of system failures. Planning out an FMEA can be challenging, so we created this comprehensive guide to running a failure modes and effects analysis.


Irene is a freelance writer in the San Francisco Bay Area. She is interested in how communication relates to and translates into collaboration in the workplace and beyond

What is FMEA?

FMEA (Failure Mode and Effects Analysis, also known as Failure Modes and Effects Analysis or Failure Mode Effects Analysis) is a procedure used to pinpoint where certain systems or machinery might fail. That way, your team can set up a plan to proactively fix those systems. By reviewing as many components and subsystems as possible, you can identify the system’s potential failure modes and their root causes.

FMEA’s structured approach helps you anticipate potential failures in the manufacturing or design of a product or process. FMEA has two broad categories: Design FMEA (DFMEA) and Process FMEA (PFMEA).

Failures are errors or defects, and can be potential or actual. Failure modes are the ways a product or process fails. In other words, what went wrong, and how.

Failure effects are the ways these failures can lead to waste, defects, or harmful outcomes. These consequences could include user injury, machine or process malfunction, or poor product quality. The system failure could also affect other systems directly related to it. Effects analysis studies how failures impact different system components.

FMEA is a common tool used in engineering related to safety, quality, and reliability. The analysis can be qualitative or quantitative. By using inductive reasoning to assess failure risks in a process or product’s design and development, FMEA makes good engineering even better. Your team can use FMEA to evaluate and prevent possible failures by correcting early, rather than reactively—after failures have occurred.

FMEA enables you to identify and prioritize failures according to how serious their consequences are, how often they happen, and how easy they are to find. You can then act to limit or prevent failures, starting with the most serious ones.

[rtb_inline_subscription id=”1″ size=”small” header=”Subscribe to learn more about team management” button=”black”]

History of FMEA

Developed by reliability engineers in the late 1950s, FMEA was one of the earliest systematic approaches to analyzing failures and finding their potential causes. FMEA was created to study potential problems caused by malfunctioning military systems, and continues to be effective at discovering potential failures and evaluating system reliability. This allows you to correct and limit process failures early so you can avoid their negative impacts on your system.

Failure mode effects and criticality analysis (FMECA) is an extension of FMEA.

The added criticality analysis lets your team compare the likelihood of failure modes against the severity of their consequences. You can then focus fixes on failure modes with higher probability and more severe consequences, where the fixes can do the most good.

When should you use FMEA?

Ideally, you should begin using FMEA during the earliest conceptual design stages of a process or product, and then through the design or redesign process.

Screenshot of Miro's Concept Map Template
Use Miro’s Concept Map Template for the conceptual design stages of a process or product.

Alternatively, you can try using this approach in these cases:

  • Before you develop control plans for a new or modified process and for control before and during ongoing processes.
  • When you plan to apply an existing process or product in a new way.
  • When you want to improve the quality of an existing process or product.
  • For optimal results, you should always examine and improve quality and reliability throughout the life of the process or product.

What are the types of FMEA?

There are a variety of FMEA types out there that cover a broad range of different process failures. However, despite their differences, they all serve the same purpose: risk assessment and mitigation of potential risks.

These are the six main different types of FMEAs:

1. System/Functional FMEAs

A system FMEA is a subsection of a regular FMEA intended to examine an entire system and check whether all of the respective components are working in harmony with one another. Corrective actions may be derived from the examination.

2. Service FMEAs

A service FMEA is a structured protocol designed for identifying and averting product failures relating to service. This includes failures due to incorrect operation, installation, repair, or maintenance.

3. Design FMEAs

Also known as DFMEAs, this type applies to product design, with an emphasis on either its early or end phase of development. The purpose of a DFMEA is to expose any potential flaws in the design process and serve as a form of quality control for the product.

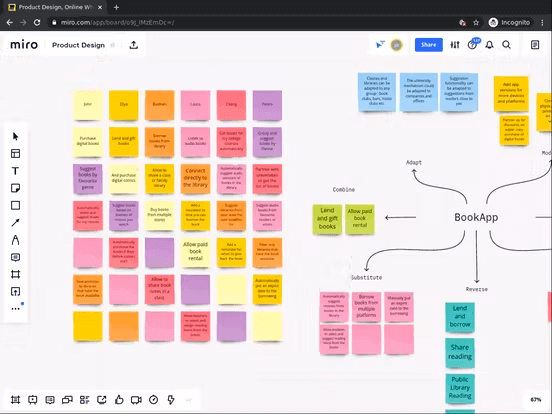

Screenshot of product design brainstorming in Miro
Use Miro to brainstorm your product design ideas.

4. Process FMEAs

Process FMEAs exist to uncover risks in existing and new processes. They also aim to find the effects of failures within those flaws and what can be done regarding corrective action.

5. Software FMEAs

Software FMEAs are an offshoot of Design FMEAs, which look at software elements and systems for potential risks and effects of failures. Software FMEAs ensure that product operation and navigation is safe and effective for use.

6. Manufacturing FMEAs

A Manufacturing FMEA is the process of investigating flaws and problems within a manufacturing system. It covers all phases of product development and assesses whether changes are needed for corrective action.

What are the steps of the FMEA process?

The FMEA process requires several steps in order to reach a comprehensive conclusion. Each step builds on the one before, so they should be followed chronologically. The steps are:

Step 1: Isolate potential failures and effects

The first step is to identify all functional requirements for a product or system and then isolate any failure modes that are present. By identifying one flaw, the FMEA process can prevent a knock-on effect of other flaws within the whole system.

Step 2: Define the severity

The seriousness of a failure or potential risk is crucial to the FMEA process. Once the severity of a flaw has been defined, corrective actions can become more effective.

Step 3: Measure the likelihood of occurrence

Some failures occur due to freak incidents. Others are the result of a major systemic flaw. Measuring how likely a potential risk is to occur again helps the FMEA develop a better strategy for corrective action and fundamental process improvements.

Step 4: Failure recognition

Once a failure has been identified and resolved, the new system needs to be able to recognize that failure in other products. Failure recognition is the process of testing remedial actions for effectiveness and integrity.

FMEA greatly benefits business owners and workers

Why should you use FMEA? Here are the main reasons teams implement this approach.

Fewer repair costs

FMEA works to proactively repair equipment and systems. So instead of working a machine till it fails and increasing its probability of future breakage, you fix it when it’s most optimal. If the failure is discovered sooner, it costs less than it would later in product or process development, when the failure could be worse.

More uptime

A machine breaks, which slows your assembly line. This means you’re losing money! FMEA procedures allow your team to evaluate design in a straightforward, orderly way, and to identify failure points and system interface problems early. This makes such random breakdowns far less likely.

Greater safety for workers and users

Safety is always your #1 priority, but what if a machine has outdated parts? That could be risky not only for your workers and users but for your business itself. FMEA helps lower risk of injuries through improved design and proactive repair.

Multiple choices for reducing risk

FMEA empowers your team to troubleshoot during ongoing procedures, and to develop ways to monitor performance and locate faults. It’s a documented method that helps you analyze how new or changed designs or processes impact safety and success.

5 industries that use FMEA regularly

FMEA is widely used across industries from software development to manufacturing to healthcare, throughout product or process life cycles. Whatever your business is, discovering failure points early on helps you improve safety and quality, satisfy customers, and save money.

Software development

FMEA can be applied to software development. This approach is usually implemented when the team wants to improve software quality, reduce Cost of Quality (CoQ), Cost of Poor Quality, (CoPQ) and defect density.

Screenshot of how a software development team uses Miro
Use Miro to collect your software development ideas.

Manufacturing

The manufacturing industry counts on FMEA to anticipate and eliminate potential assembly and product failures sooner, and prevent expensive corrective actions later. This results in reliably high-quality products that satisfy industry customers.

Transport and logistics

They also rely on FMEA to empower them to deliver products reliably. The industry uses FMEA to evaluate logistics and supply chains in order to ensure high-quality service to customers.

Healthcare

This industry counts on FMEA as an effective tool for identifying parts of processes that most need improvement. Working preventatively helps reduce risk to both patients and staff.

Agriculture

The industry also relies on FMEA. It is used to assess risk to the environment, to manufacturing and machinery, and to product quality. This is important for environmental, ethical, and legal considerations.

Having trouble putting together an FMEA plan?

FMEA can be complicated to fully plan out, but with Miro’s FMEA templates, it’s simple!

We recommend having the template in front of you as you read the rest of this blog post. That way you can fill it out with ease.

Determine your team’s general procedure steps. But first be sure to fully educate relevant team members on your organization’s specific standards for the system you are evaluating. For more about FMEA procedure, read this.

FMEA definitions to get you started

Use FMEA as a risk assessment tool to evaluate the severity, occurrence and detection of risks so you can prioritize the most urgent ones. Read on to learn what each term means. Each category has a scoring matrix with a scale from 1 to 10.

Severity number (S)

Severity numbers are ranked 1–10. Unlikely failures or low risks to the end customer are rated as 1, whereas 10 means a high likelihood of failure or high risk.

Probability of occurrence (O)

The probability of occurrence is how often this failure or problem happens. These are also ranked 1–10, so a failure happening every 3rd time a machine turns on could be rated a 10, while a failure happening every 500,000 times a machine turns on could be a 1 or 2.

Likelihood of detection (D)

The likelihood of detection also ranked 1–10, shows whether or not you have systems in place to detect the failure. If you get an alert the second a failure happens, mark it as a 1, but if you never get alerts and instead find out on your own, rank it as a 10.

Risk Priority Number (RPN)

Your Risk Priority Number is a combination of the above three. To get your RPN, multiply the severity number by the probability of occurrence by the likelihood of detection: RPN = S x O x D.

How to run a Failure Modes and Effects Analysis with Miro

Now you and your team are ready to begin using Miro’s easy FMEA Template. Simply follow the process steps below.

Step 1. Open up the FMEA Template

You can find the FMEA template in our library. Sign up to Miro free and copy the template.

Step 2. List potential failure modes

What failures have happened over recent years? What are the ways in which the failures occurred? Use sticky notes to write down all the potential failure modes and move them to the area called ‘Detect a failure mode’ on the board.

Step 3. Speculate possible outcomes

What is the outcome if a certain system fails? How might each of the process components fail? Record system-wide effects for each failure mode on stickies and put them in the same frame.

Step 4. Assign S, O, and D rankings

Move your stickies with failure modes to the frame #2 and assign severity numbers. You can create tags and add them to stickies to classify failure modes based on their severity numbers.

In frames #2 and #3 of the template, assign the probability of occurrence and likelihood of detection using tags.

Step 5. Combine S, O, and D to get the Risk Priority Number

Multiply S x O x D. Once combined, they will give you the RPN. Copy failure modes into frame #5 and add RPN to each sticky.

Step 6. Designate which system requires immediate maintenance

Which system has the highest RPN? Remember, higher RPN = more critical, lower RPN = less critical.

Brainstorm scenarios for improving various products or processes. In our example, the most critical failure mode is ‘Cash not disbursed,’ so we would list action items for the team to address.

Step 8. Share your schedule and FMEA

After your FMEA template is filled in, you can share it with all the major stakeholders even if they didn’t participate in the mapping process.

Miro makes FMEA easy

FMEA is a powerful tool that can help your team improve safety, quality, customer satisfaction, and profits. FMEA may seem complicated, but don’t worry! Miro’s template makes the procedure simple.

Pre-made, flexible FMEA templates

Use frames, colorful sticky notes, tags and other features to express and organize your thoughts and issues. These templates enable you to prioritize product or process deficiencies to ensure the best results and satisfy customers. You can also add other templates (such as risk assessment matrix, timeline templates, or action plan templates) to visualize the big picture and make the most effective decisions.

Easy document upload

Add visual content including charts, schemes, and pictures to enhance your conceptual presentation. Upload documents and files that can integrate with a wide range of choices such as Google G Suite, Dropbox and JIRA. When you visualize the different components of your product or process, you can better evaluate it with FMEA.

Collaborative tools for members of all different teams

When your team collaborates on a visual whiteboard, you can work together to find and discuss issues. Add comments, refer to each other, and ask questions in video chat to save time and increase productivity.

Working collaboratively allows your team to share in contributing to the FMEA process—which means greater improvements, higher quality, and better results.


Try the FMEA Template for free
